To ensure that new electronic devices that utilize the radio spectrum do not cause harm to the public or harmful interference to other licensed spectrum users, Electromagnetic Compatibility and Emissions (EMC/EMI) tests are required to be passed by importers and suppliers.

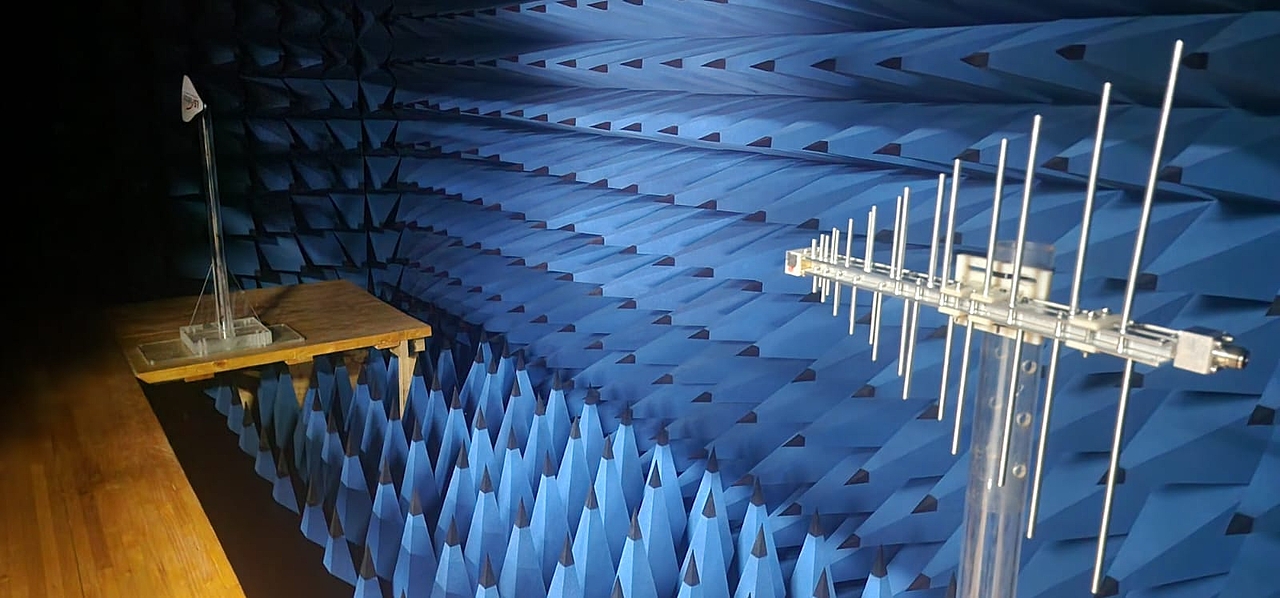

LS of South Africa Radio Communication Service’s full anechoic chamber provides you the ideal environment for Pre-compliance EMC/EMI testing with the ultimate objective of obtaining a type approval certificate from the national spectrum regulatory authority.
We offer a wide range of measurements
- Electromagnetic Compatibility Pre-compliance
- Antenna Characteristic Measurements
- Antenna radiation patterns (2D and 3D)
- Gain curves
- VSWR
- Return Loss
- Electromagnetic radiation analysis
- Material Characteristic Measurements
- System RF calibration measurements
Option 1
Full day Full Anechoic Chamber hire (08:00 – 16:00)
Option 2
Half day Full Anechoic Chamber hire (08:00 – 12:00 / 13:00 – 17:00)
Options 1 & 2 Include:
- 1 * RF Specialist to assist with measurements
- Available Equipment:
- Spectrum Analyzer
- Signal Generator/Tracking Generator
- Automatic Turntable
- Full Anechoic Chamber
- Anechoic Chamber Measurement Software
- Includes Measurement Report
For pricing see Booking form
Our Anechoic Chamber's Specifications
- EMC approved reference antennas
- Conductive carbon coated pyramidal cones covering up to 18GHz
- 3m antenna/device separation distance
- 1.2m test volume (1.728m³)
- 6.4m x 2.4m x 2.8m chamber volume (44m³)
- NSA Compliance tested to 3m
- Up to 100dB attenuation of external RF sources
- Achieve noise floor levels lower than –128dBm
- Vehicle access up to chamber door
Option 3
1 * Device EMI/EMC (delivered by customer) pre-compliance test
Option 4
1 * Antenna (delivered by customer) Characteristic measurement
Options 3 & 4 Include:
- Measurements performed by LSSA’s RF Specialist
- 1 * Pre-Compliance Report or
- 1 * Antenna Specification
- Report Delivery within 1 week
For pricing see Booking form
