HAROGIC SAN-45/60
- Frequency Range: 9 kHz To 4.5/6.3 GHz
- 1 GHz DANL: -162 dBm/Hz
- 1 GHz Phase Noise: -110 dBc/Hz@10 kHz
- Analysis Bandwidth: Up to 25 MHz
- USB3.0/2.0 Type C Interface
- Highly Compatible API Interface
- ARM and X86 Processor Are Supported
- Linux and Windows Operating Systems Are Supported
HAROGIC NXN-45/60
- Frequency Range: 9 kHz To 4.5/6.3 GHz
- 1 GHz DANL: -162 dBm/Hz
- 1 GHz Phase Noise: -110 dBc/Hz@10 kHz
- Analysis Bandwidth: Up to 25 MHz
- 1000/100 Mbps Ethernet Interface
- Highly Compatible API Interface
- Linux and Windows Operating Systems Are Supported
HAROGIC SAN-400
- Frequency Range: 9 kHz to 40 GHz
- 1 GHz DANL: -161 dBm/Hz
- 1 GHz Phase Noise: -107 dBc/Hz@10 kHz
- Analysis Bandwidth: Up to 100 MHz
- USB3.0/2.0 Type C Interface
- Highly Compatible API Interface
- ARM and X86 Processor Are Supported
- Linux and Windows Operating Systems Are Supported

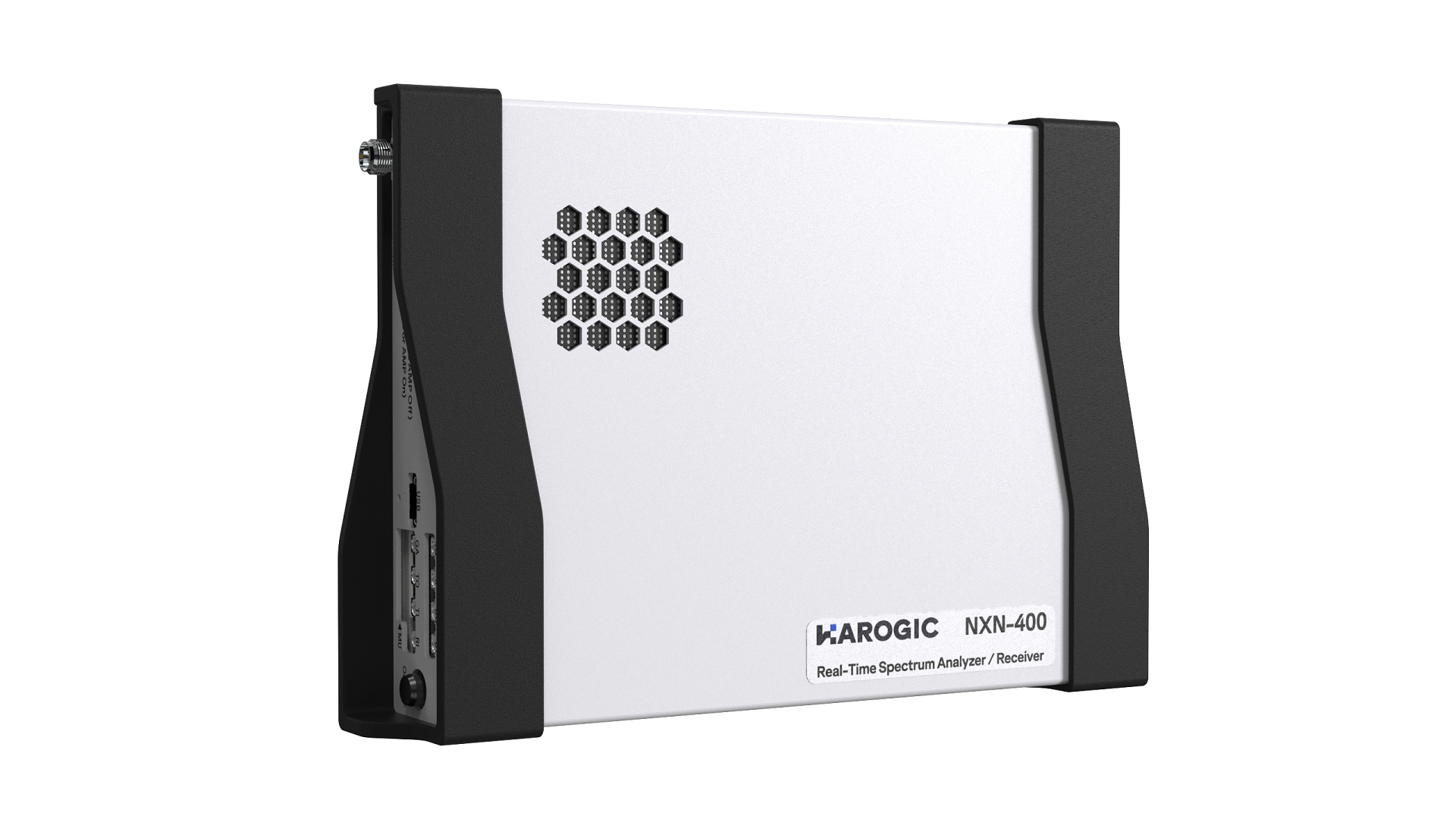

HAROGIC NXN-400
- Frequency Range: 9 kHz To 40 GHz
- 1 GHz DANL: -161 dBm/Hz
- 1 GHz Phase Noise: -107 dBc/Hz@10 kHz
- Analysis Bandwidth: Up to 100 MHz
- 1000/100 Mbps Ethernet Interface
- Highly Compatible API Interface
- Linux and Windows Operating Systems Are Supported

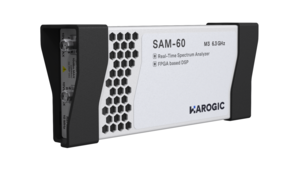

HAROGIC SAM-60/80
- Frequency Range: 9 kHz to 6.3/8.5 GHz
- 1 GHz DANL: -166 dBm/Hz
- 1 GHz Phase Noise: -110 dBc/Hz@10 kHz
- Analysis Bandwidth: Up to 100 MHz
- USB3.0/2.0 Type C Interface
- Highly Compatible API Interface
- ARM and X86 Processor Are Supported
- Linux and Windows Operating Systems Are Supported

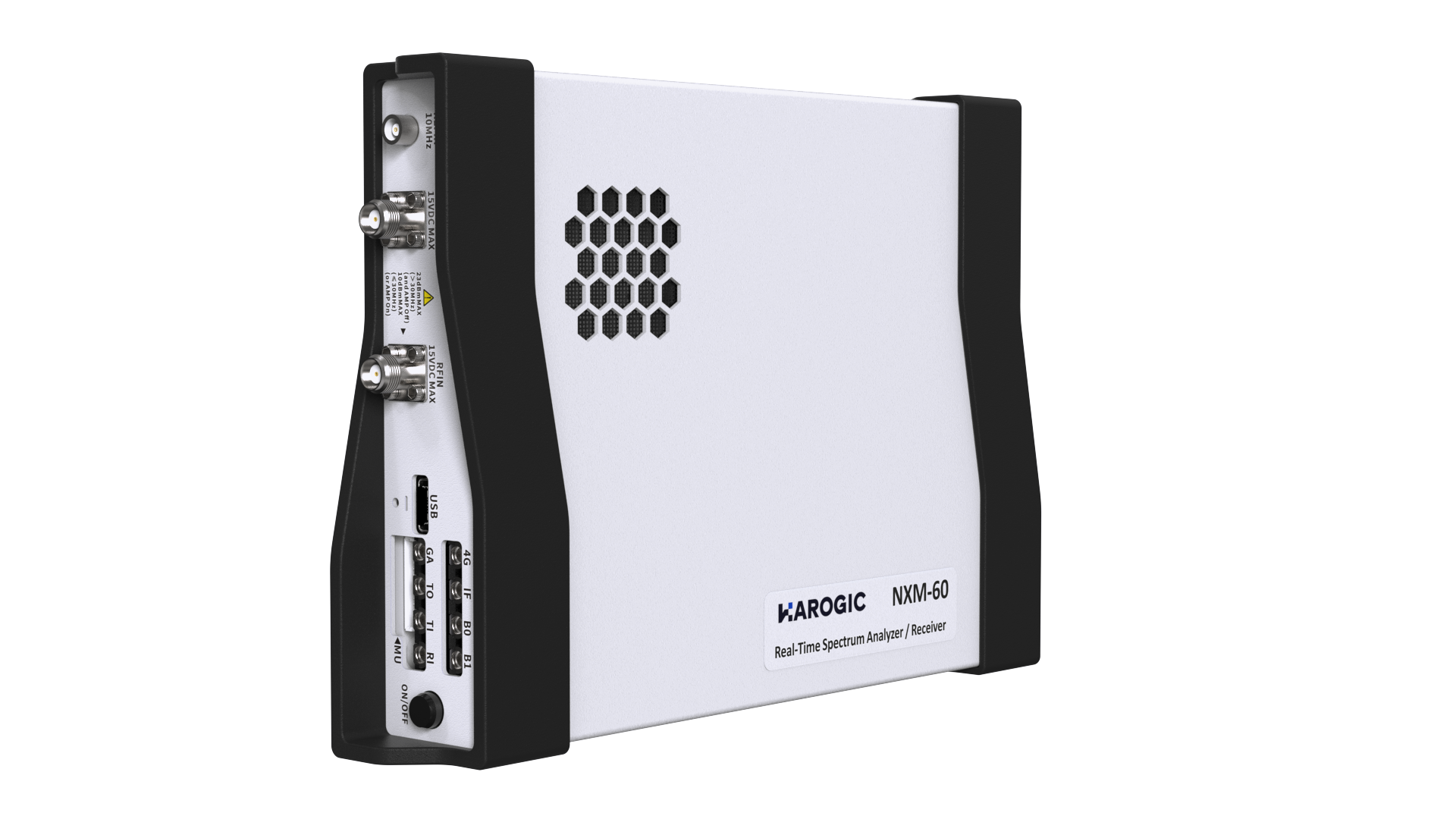

HAROGIC NXM-60/80
- Frequency Range: 9 kHz To 6.3/8.5 GHz
- 1 GHz DANL: -166 dBm/Hz
- 1 GHz Phase Noise: -110 dBc/Hz@10 kHz
- Analysis Bandwidth: Up to 100 MHz
- 1000/100 Mbps Ethernet Interface
- Highly Compatible API Interface
- Linux and Windows Operating Systems Are Supported

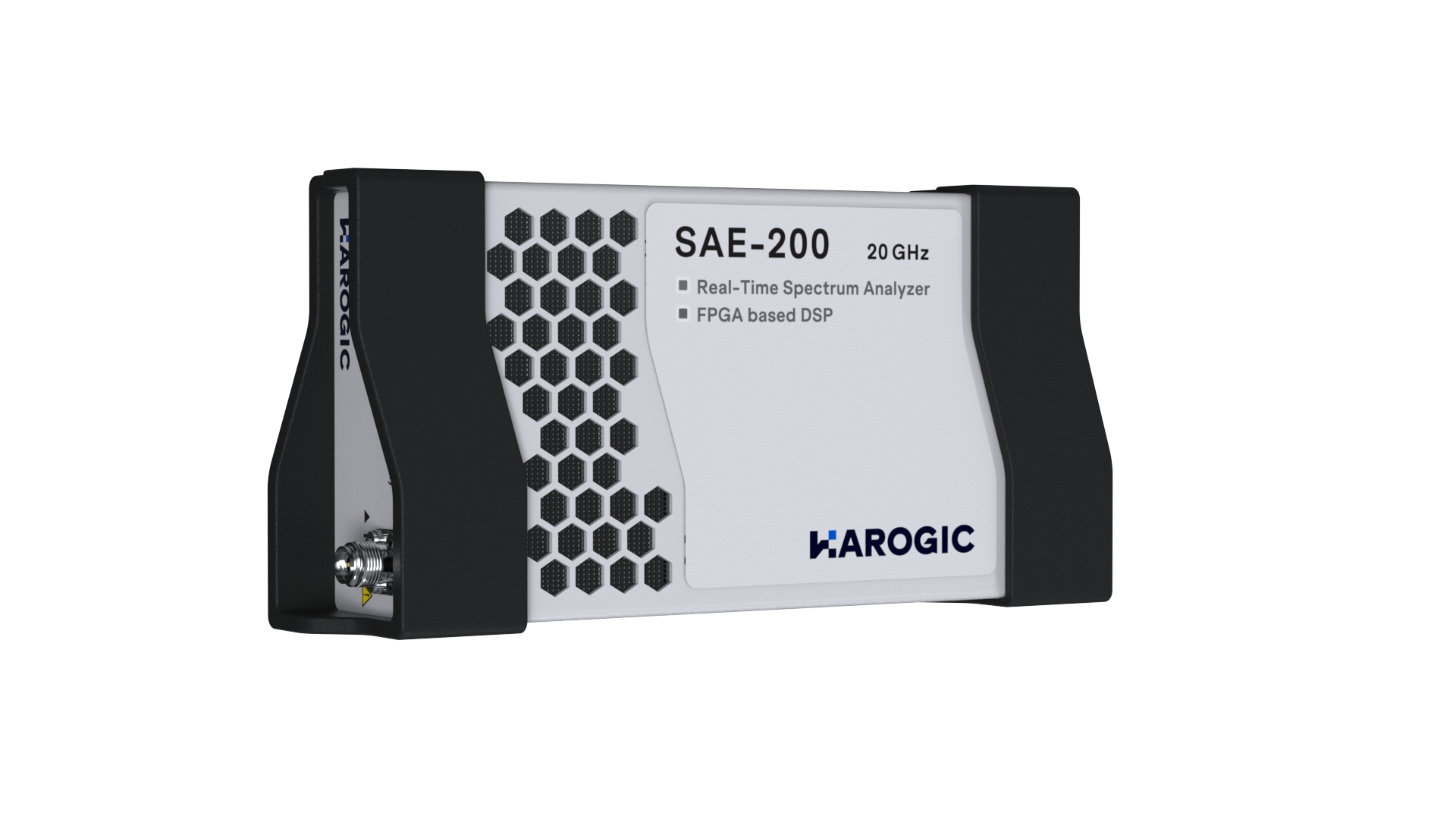

HAROGIC SAE-90/200
- Frequency Range: 9 kHz To 9.5/20 GHz
- 1 GHz DANL: -168 dBm/Hz
- 1 GHz Phase Noise: -100 dBc/Hz@10 kHz
- Analysis Bandwidth: Up to 100 MHz
- USB3.0/2.0 Type C Interface
- Highly Compatible API Interface
- ARM and X86 Processor Are Supported
- Linux and Windows Operating Systems Are Supported

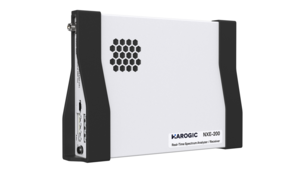

HAROGIC NXE-90/200
- Frequency Range: 9 kHz To 9.5/20 GHz
- 1 GHz DANL: -168 dBm/Hz
- 1 GHz Phase Noise: -100 dBc/Hz@10 kHz
- Analysis Bandwidth: Up to 100 MHz
- 1000/100 Mbps Ethernet Interface
- Highly Compatible API Interface
- ARM and X86 Processor Are Supported
- Linux and Windows Operating Systems Are Supported
Options
SAN, SAM, & SAE SERIES
| Code | Option | Description |
| 01 | Built-in OCXO Reference Clock | Built-in Hardware |
| 02 | Built-in Signal Generator (SAN & SAM Series Only) | Built-in Hardware |
| 20 | MUXIO IO Board | Accessory |
| 21 | External GNSS | Accessory |
| 22 | External High Precision GNSS | Accessory |
| 23 | External GNSS Disciplined OCXO Reference Clock | Accessory |
| 40 | T1 Temperature Class | Built-in Hardware |
| 41 | T2 Temperature Class, Only Available for Core | Built-in Hardware |
| 71 | Basic Digital Modulation Analysis | Software |
NXN, NXM, & NXE SERIES
| Code | Option | Description |
| 01 | Built-in OCXO | Built-in Hardware |
| 02 | Built-In Signal Generator (NXN & NXM Series Only) | Built-in Hardware |
| 05 | Internal High Precision GNSS | Built-in Hardware |
| 06 | Built-In GNSS Disciplined OCXO Reference Clock | Built-in Hardware |
| 40 | T1 Temperature Class | Built-in Hardware |
| 71 | Basic Digital Modulation Analysis | Software |
